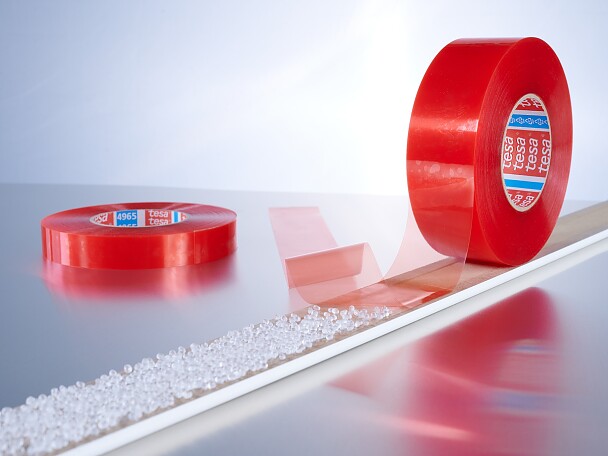

tesa ® 4965 is a very strong double sided tape suited to demanding applications, providing a reliable bond to LSE substrates. It that has a modified acrylic adhesive that has a very high temperature range.
The PET backing plastic is strong and performs very well in automated applications (it is not hand tearable).
Available in standard widths from 3mm up to 50mm, non-standard widths available up to 1,300mm.
tesa 4965 Features
- Reliable bond even to LSE substrates (low surface energy)
- Immediate usability right after assembly
- Suitability for most demanding applications such as heavy stress, high temperatures or critical substrates
tesa 4965 Applications
- Mounting of ABS plastic parts in the car industry
- Self-adhesive mounting of rubber/EPDM profiles
- Mounting of decorative profiles and moldings in the furniture industry
- Mounting of battery packs, lenses and touch-screens in electronic devices
Technical Properties
Backing Material PET film
Color transparent
Total thickness 205 µm
Type of adhesive tackified acrylic
Elongation at break 50 %
Tensile strength 20 N/cm
Adhesion Properties
Adhesion to ABS (after 14 days) 12 N/cm Adhesion to ABS (initial) 10.3 N/cm
Adhesion to Aluminium (after 14 days) 10.6 N/cm Adhesion to Aluminium (initial) 9.2 N/cm
Adhesion to PC (after 14 days) 14 N/cm Adhesion to PC (initial) 12.6 N/cm
Adhesion to PE (after 14 days) 6.9 N/cm Adhesion to PE (initial) 5.8 N/cm
Adhesion to PET (after 14 days) 9.5 N/cm Adhesion to PET (initial) 9.2 N/cm
Adhesion to PP (after 14 days) 7.9 N/cm Adhesion to PP (initial) 6.8 N/cm
Adhesion to PS (after 14 days) 12 N/cm Adhesion to PS (initial) 10.6 N/cm
Adhesion to PVC (after 14 days) 13 N/cm Adhesion to PVC (initial) 8.7 N/cm
Adhesion to Steel (after 14 days) 11.8 N/cm Adhesion to Steel (initial) 11.5 N/cm
Rating Properties
Temperature resistance short term 200 °C
Temperature resistance long term 100 °C
Tack + Ageing resistance (UV) ++
Humidity resistance ++
Resistance to chemicals +
Softener resistance +
Static shear resistance at 23°C +
Static shear resistance at 40°C +
