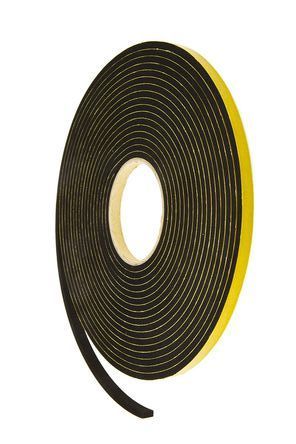

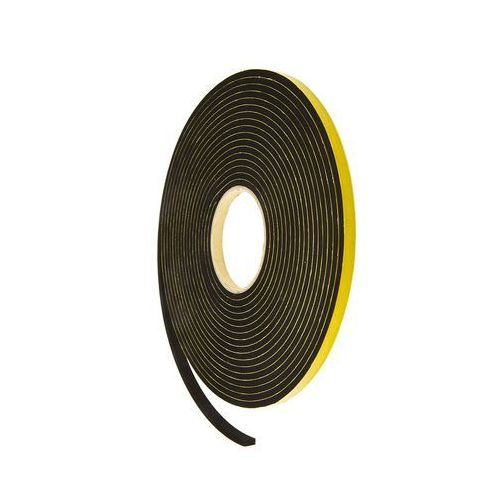

EPDM Tape

Closed Cell EDPM Rubber Foam Tape

A versatile, blended cellular rubber foam tape with high tack pressure sensitive acrylic adhesive. It offers excellent resistance to water making it ideal for sealing applications. EPDM (Ethylene Propylene Diene Monomer) /Neoprene sponge tape has an impressive sound and thermal control and is often used used for acoustic appliances and vibration dampening. Available in Rolls, Sheets & Gaskets.

EPDM Tape Technical Data

Density (kg/m3): 130 +/- 20

Compression Deflection 25%, in kPa: 20-50

Compression set 50%/22h/23°C in % 14

Compression set 50%/22h/40°C in %: 42

Water Absorption (ASTM D 1056) in %: 10

Ultimate Elongation in %: 165

Tensile Strength in kPa:  478

Tear Resistance in kN/m ASTM D624 DIE C **: 1.7

Temperature Range °C (constant): - 40 / + 100

Temperature Range °C (intermittent): -  + 115

Air + UV resistance: Excellent

Oil resistance: Medium

ASTM D 1056-07 specification: 2 A1/2 A2 B2 C2 F1 M P

Spcification AFNOR NFR 99 211-80:  3C 08 A1 B3 C2 G2 P2

Fire specification (FMVSS 302): Pass 2.8mm

Fire Specification (UL 94): HBF 3mm

Special Characteristic: Yellow Card UL 94 HBF

Available Formats: Rolls, Sheets, Gaskets

Custom Sizes Available - Call for Price (01440 765515)
