Brigi Foam

BRIGi Foam Instantly Reduces Thermal Bridging in Window & Door Threshold Installations.

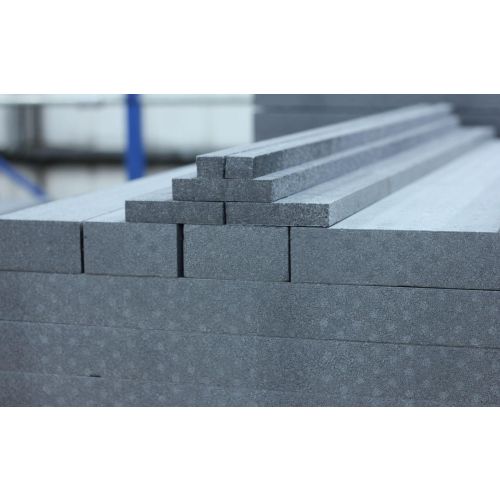

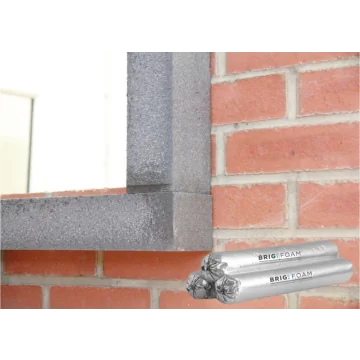

Combining strength with outstanding thermal installation, BRIGi Foam is the compact construction foam of choice. Supplied in sheets or pre-prepared strips 1200mm in length which can be cut to size on site. Most frequently used as a structural thermal break solution for window & door installations, it's strength and insulating properties enable BRIGi Foam to be used in many other construction applications that require a strong, stable light weight thermal break solution.

• High Compressive Strength
• Extremely Light Weight
• Outstanding Thermal Installation
• Biocide Free
• 6 Months Direct UV stability (during construction phase)

Free Technical Support & Advice

BRIGi Foam Benefits

• Excellent Material for Energy-Related Building Renovation
• Optimum integration in EWI systems
• Optimisation of the Ψ-value due to it's very high thermal insulating properties
• Allows windows to be fitted into the outer thermal insulation level
• Fully Compliant with the requirements of the Building Energy Act (EnEV was valid 31.10.20)
  and the recommendations of the RAL “installation guide”
• Certified Passive House component
• 10 Year Function Warranty*

BRIGi Foam Technical Data

• Material: THERMAPOR (EPS-F / flame-retardant)
• Colour: Grey
• Thermal Conductivity (DIN EN 12667) λ = 0.040W/(m·K)
• Temperature Resistance (ISO 75-1): long-term +85 °C
• Ageing Resistance: Resistant to rotting, non-rotting
• Compressive Strength at 2% (DIN EN 826): 1,194 N/mm2
• Compressive strength at 10% (DIN EN 826): 1,793 N/mm2
• Bending Resistance (DIN EN 12089) ≥ 650 kPa
• Load Transfer: 200kg/m depending on wall substrate and projection
• Shearing Stress (DIN EN ISO 14130) X = 0.217 N/mm2
• Form Stability Under Thermal Load: -40°C to +85°C
• National Test Certificate for a Construction Product P-23-001616-PR02-ift Building Material Class: (DIN 4102-1) B2 (normal flammability)
• Fire Behaviour: (DIN EN 13501-1) E
• Airtightness: (DIN EN 12114) a ≤ 0,1m3 /[h·m·(daPa)2/3]
• Impermeable to Driving Rain: (DIN EN 1027) ≥ 1,200 Pa
• Bulk Density: 150kg/m3 ± 10%
• Flame Retardant: HBCD-free flame retardant
• UV stability: 6 months direct weathering during the construction phase
• Compatibility with Adjacent Building Materials: Requirements fulfilled
• Compatibility with Salt Water: Resistant
• Compatibility with Hydrochloric Acid (10 %): Resistant
• Compatibility with Caustic Soda (10 %): Resistant
• Air Permeability Coefficient (DIN EN 12114): a = 0.00m3/[h·m·(daPa)n]
• Creep Characteristics at 20 % and 60 %: Em = 0.68 0/00 up to 5.2 0/00
• Water Absorption (28 days storage) DIN 12087 ≤ 1.5 Vol. %
• Water Vapour Diffusion Resistance μ (DIN EN ISO 12572) < 500
• Waste code 170604 170904
• Dimension tolerance (DIN 7715 T5 P3): Requirements fulfiled
• Shelf Life: 24 months
