CHR 2975 Themral Spray Masking Tape

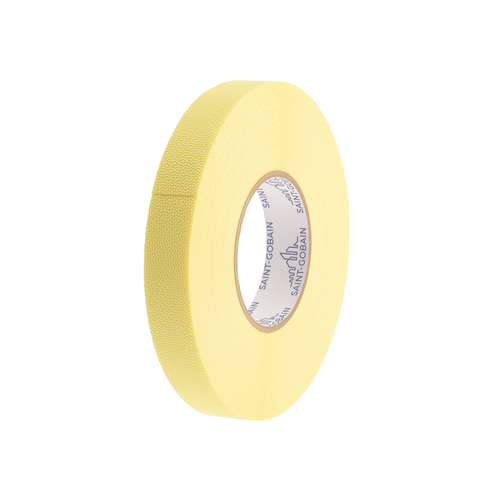

CHR 2975 - 8RY Thermal Spray Masking Tape

by Saint Gobain



CHR® 2975-8RY is manufactured from silicone rubber/fibreglass cloth coated with high-temperature adhesive with a yellow PVC liner.

CHR 2975 8R tape is designed to withstand both the punishing abrasion of grit blasting and the extreme temperatures/pressures associated with the plasma spray process. The adhesive is a high-temperature silicone, which allows the product to withstand continuous temperatures up to 260°C and also prevents tape slippage after application. These tapes have excellent strength and flexibility, which allows for easy wrapping of complex shapes and minimizes wrinkling during the flexing of cables.



2975 is used in the plasma spray process: a method of applying thin coatings of metal or high-temperature ceramics to a surface. The coating is sprayed at high pressure and at extreme temperatures. The tape is applied adjacent to areas of parts, which are to be plasma sprayed. These tapes protect these areas both from the grit blasting, which is used as a surface preparation, and from the actual plasma spray coating. The aerospace industry is the prime market for the use of plasma spray tapes, specifically, jet engine manufacturers, overhaul centres, major airline maintenance centres, Air Force Bases, and Naval Air Rework Facilities (NARF’S).

CHR 2975-8R Properties


Performance tests are run using standard test procedures. The values presented are typical values and should not be used for specification purposes.
  • Backing Material: Glass-Silicone
  • Adhesive Type: Silicone
  • Total Thickness mm (mil): 0.267 (10.5)
  • Backing Thickness mm (mil): 0.178 (7.0)
  • Adhesive Thickness mm: (mil) 0.089 (3.5)
  • Adhesion to Steel N/cm (oz/in): 5.5 (50)
  • Tensile Strength N/cm (lb/in): 263 (150)
  • Dielectric Strength (volts): 7,000
  • Elongation (% at break): 5
  • Operating Temperature °C (°F): -73 to +260 (-100 to +500)
  • Colour: White
