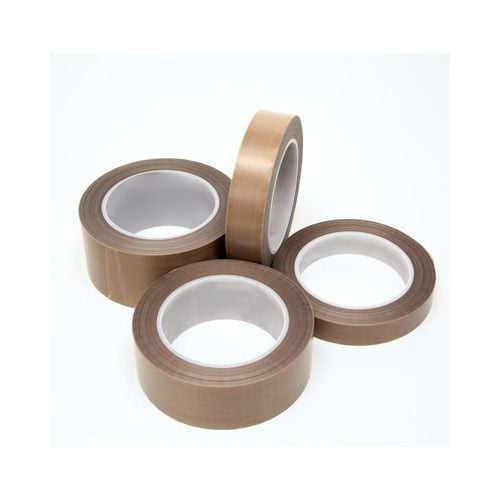

Self Adhesive PTFE Tape

"Often incorrectly referred to as Teflon ® Tape"

This strong, flexible tape is made from woven glass cloth and is impregnated and coated with PTFE. It features a high temperature silicone adhesive on one side and has a very high operating temperature range of -73°C to +260°C.

This Self Adhesive PTFE Tape has outstanding release and non friction properties. It is used to prevent the build up of molten plastic & film on its extremely low fiction surface and is widely used as a release tape for the protection of sealing jaws and heat wires on bag sealing, and L Sealing machines.

Self Adhesive PTFE Tape Applications

  • Shrink Wrap machines
  • Blister & Vacum Pack Machines
  • Heat Sealing Bars & Wires
  • Heat Platens
  • Heat Curtains
  • Hot Plate Welding (as a release fabric)

Self Adhesive PTFE Tape Technical Data

  • Base PFTE Fabric Weight (g/M²) : 250 (FTMS 191A-5041
  • Base Thickness (mm) : 0.120 (FTMS 191A-5030)
  • Adhesive Thickness (mm) : 0.045 (FTMS191A-5030
  • 180° Peel Adhesion Strength (N/cm) : 6.2 (ASTM D3330-83)
  • Tensile Strength (N/cm) : 250 x 230 (FTMS 191A-5102)
  • Adhesive : Silicone
  • Temperature Resistance (°C) : -73 to +260
  • Non-Standard Sizes & Die Cuts Available
